The safer way to plow. Avoid costly property and plow damage. Reduce downtime.

The System

The GL3000PMC Guidance laser uses an “ultra-bright” green laser spot to establish wing plow trailing edge location before you get there.

The laser spot impacts on the road/snow surface ahead of the truck and shows the driver where the wing plow trailing edge will be. The laser reference spot is on the road and in the driver’s normal field of view.

GL3000PMC Guidance Laser mounted under headache rack

The GL3000PMC laser is electronically designed for cold weather operation. This laser is coupled to a special heat source for the exit window to reduce or eliminate ice build-up on the front of the laser output lens. The GL3000PMC also has a unique pneumatic snow removal system incorporated with the laser housing that automatically fires a blast of air at the front of the laser lens every 5 seconds. This removes snow build-up front the laser output lens.

The GL3000PMC is a class IIIA ultra bright green laser with 5mW of power. Green is most visible to the eye in all working conditions. The GL3000PMC laser is CFR21-1040 compliant and meets all federal and OSHA standards for operation.

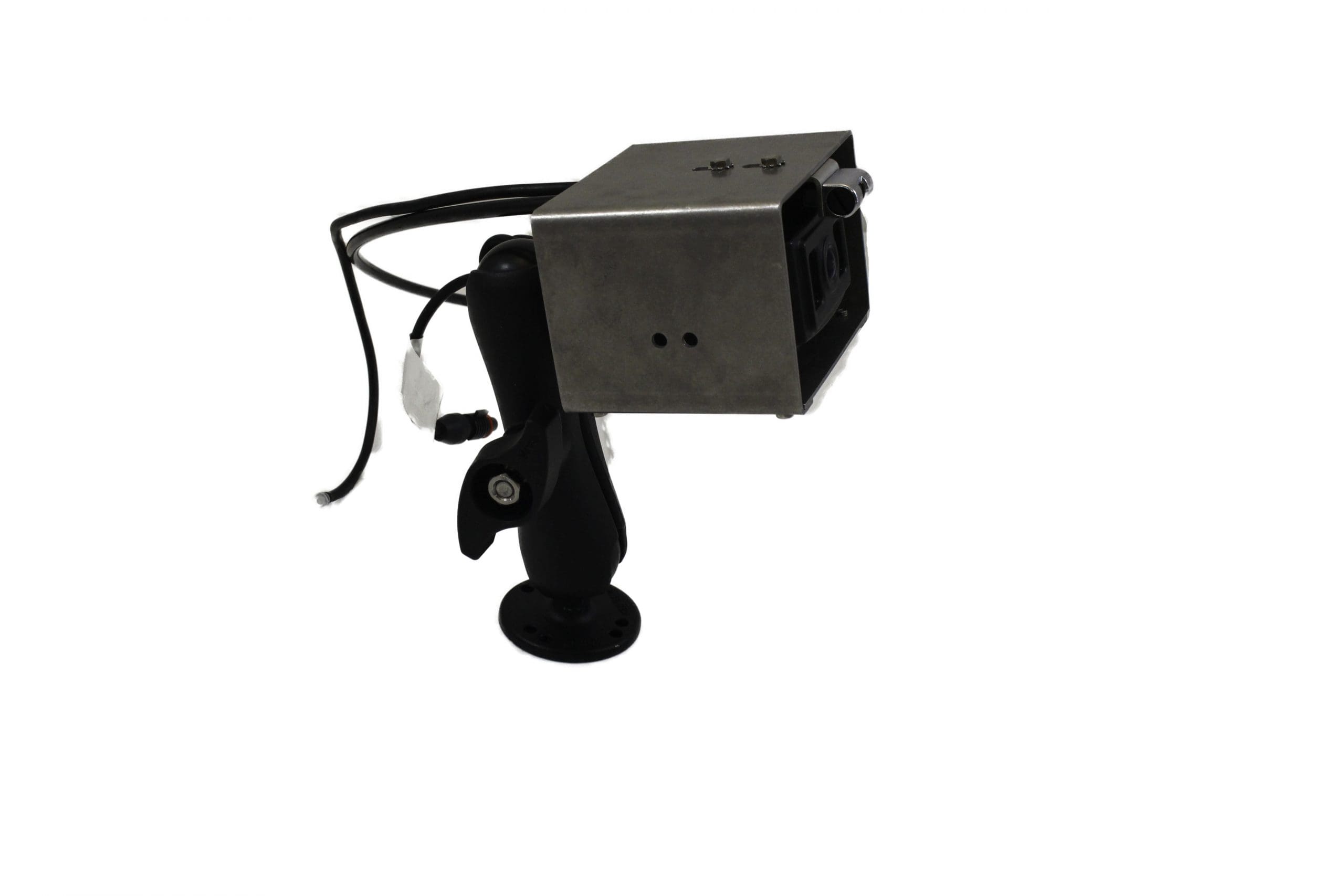

GL3000PMC "ultra bright" green laser

The laser housing is weatherproof, hermetically sealed, and dry nitrogen charged for operation in virtually any weather condition.

The systems work directly off the 12 volt side of truck, and will operate from 11 to 15 volts DC with positive or negative ground.

• Reduces plow and property damage.
• Reduces downtime for plow repair
• Less strain on the operator * Safer

The Product

• Main Housing – Weatherproof, containing optic plate mounting platform, micro process or electronics, laser, laser mounting assembly, laser driver board, automatic cooling and heating system, front window is automatically heated to reduce or eliminate icing.
• Pneumatic Air Blast Module – Removes snow build up from laser exit window with automatic air blast every 5 seconds.
• Control Panel In Cab – Allows the operator to turn the laser on and off as well as override the automatic air blast if more air is desired for snow removal.
• 20 Feet of Interconnect Cable – With waterproof mil spec-line connector mounted between the laser main housing and the control panel mounted in the cab.
• 5 Feet of 12V DC Cable – Running from control box for connection to vehicle’s 12V DC power.
• 20 Feet of ¼-Inch Pneumatic Hose Line – Complete with connectors for tying into vehicle’s secondary air source.

Specifications:

• Laser: 532 NM Class IIIA Green Laser
• Power: 11-15V DC Positive or Negative Ground
• Power Draw: 4.0 Amps (Maximum Operating), 0.03 Amps (sleep Mode)
• Operating Temperature: -40° F to +50° F (-40° C to +10° C)
• Pneumatic: 120 PSI / 12V DC Operation
• Laser Dimensions:
  • Height:  4½ Inches
  • Length: 9 Inches
  • Width (At Widest Point): 6 Inches
• Cable Length from Laser to Control Box: 20 Feet
• 12V Power Cable Length from Control Box: 5 Feet
• Pneumatic Hose Length (Laser to Air Source): 20 feet
• Shipping Weight: 25 lbs

* Specifications subject to change for the improvement of the product.
