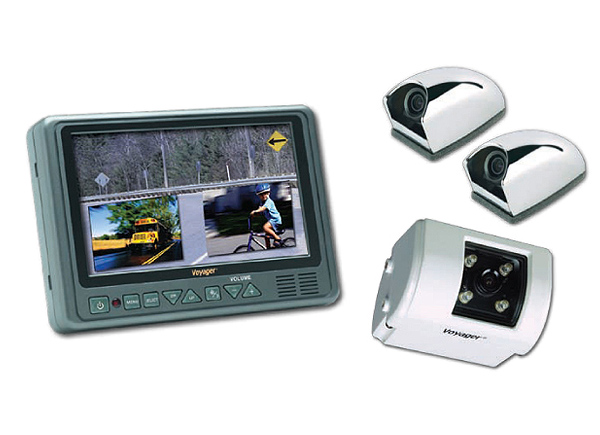

An innovative, unique two or three camera system, the Voyager® TriView Color Tilt Observation System (OBS) eliminates blind spots that drivers typically encounter when on the road. With this system, drivers can change lanes, pull into traffic, and back up safer and with more confidence than ever before. With the Voyager® TriView Color Tilt Observation System (OBS), backup safety can be dramatically improved, and driving accidents reduced, including truck backing accidents and accidents related to lane changes and lane entry.

Download Brochure (PDF*)

LCD CAMERA MONITOR

Features of the LCD camera monitor include: soft-touch backlit controls, on screen display (OSD) menus with user interface, integrated audio speaker, 4 source A/V-Camera inputs, NTSC video output (RCA jack) IR repeated for external navigation control, recessed flush mounting bracket, and much more.

SIDE BODY CAMERA

Working with a multi camera monitor, ASA’s side body camera eliminates blind spots on both sides of the vehicle. Designed for maximum aerodynamics, the side body camera is easily mounted to any flat surface.

TILT CAMERA

Features of the tilt camera include: continuous motion tilt with the ability to be stopped at any position, auto tilt down when reverse trigger is activated, audio automatically mutes when tilting, aluminum die-cast body, waterproof, microphone normal/mirror image switch, adjustable mounting angle, wide angle lens, IR illumination for low light enhancement, 270K pixels, 0.1 lux, viewing angles 104 degrees horizontal/78 degrees vertical. Requires VCT655 Tilt Cable. With a tilt camera, drivers can improve backup safety and reduce driving accidents such as truck backing accidents and accidents related to lane changes and lane or highway entry.

* Specifications subject to change for the improvement of the product.
