Missing something important?

Increase driver safety and road visibility with a Voyager® Observation System. Wedge style monitor and flip-down monitor mounting options make it easy to EXPAND your drivers’ vision!

Download Brochure (PDF*)

Don’t miss the things that really matter. Help your drivers change lanes, pull into traffic, merge, and make wide right turns with a Voyager® Observation System!

With a Voyager® Observation System, you can give your drivers the ability to clearly see vehicle surroundings and view images, beyond the normal scope of vision provided by conventional mirrors.

The Voyager® Observation System offers dual mounting options: wedge style monitor and flip-down monitor mounting options. This means that offering the many benefits of a Voyager® Observation System is so easy.

Simply choose a Voyager® 7” wedge or flip-down monitor and the corresponding bracket, mount it in the desired interior vehicle location, and start passing the advantages of increased safety onto your drivers!

Compatible Voyager® monitors include the AOM7694 7” Color LCD Monitor with 4 camera inputs. This monitor has full, split, tri, and quad-view capabilities. Also available is the AOM713WP 7” Waterproof Color LCD Monitor with 3 camera inputs.

All Voyager® products are specifically designed, built, and tested to endure the unique challenges of heavy duty and commercial vehicle environments.

FEATURES OF THE VOYAGER® OBSERVATION SYSTEM

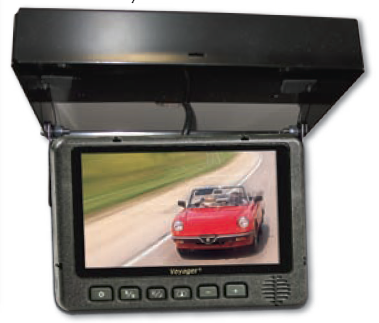

WEDGE STYLE MONITOR & FLIP-DOWN MONITOR

AOM7694 & AOM713WP

• 7” Wide format, heavy duty color LCD screens
• 12V and 24V system compatible
• Circuit protection for commercial use
• Backlit soft touch controls
• Built-in speaker
• Manual (pushbutton) or automatic (trigger) source selection
• Turn-signal (pulsed DC) compatible trigger inputs
• NTSC/PAL video signal compatible
• Auto power on
• Day/Night brightness modes
• On Screen Display for AV source, picture adjustment, and volume level
• Anti-glare/anti-scratch protective lens

AOM7694 ONLY

• Four camera (A/V) inputs
• Multi-image view modes: full screen, split-screen, tri-screen, and quad-screen capability
• IR Repeater (for external navigation computer)
• Tilt camera control

AOM713WP ONLY

• Three camera (A/V) inputs
• WATERPROOF housing (IPX5)

* Specifications subject to change for the improvement of the product.
