Designed to work on TRUCKS to provide a distance measurement in feet from the truck rear to the obstacles behind the truck such as loading docks, other vehicles, fences, posts, etc.
Downloads
Specifications:
- Controller/Display:
- Controller mounts under dash.
- Controller dimensions: 1.50” high X 3.75” wide X 5.00” deep.

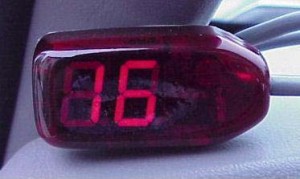

- Display dimensions: 2.00” high X 3.00” wide X 1.50” deep
- Display changes intensity with ambient light changes.
- 12 Volts @ .3 Amp polarity protected, internal resettable fuse.
- Feet or Meter select (Internal jumper).
- Internal Alarm, Volume adjustable.
- Sensor:
- All Intelligent remote sensor/controller are interchangeable between all controls and displays.
- Sensor dimensions: 2.00” high X 3.00” wide X 1.50” deep
- Sensor Meets or Exceeds SAE Specification J1455 for Heavy-Duty Trucks.
- Sensor Withstands Demands of Automotive Exteriors.
- Reads distance to 16 feet (5 meters):
- Sensor distance offset (0 to 3 feet): Allows sensor mounting recessed up to 3 feet from the back of the vehicle so the display will read zero when the rear of the vehicle is at the obstacle, as used on dump trucks, etc.
* Specifications subject to change for the improvement of the product.
