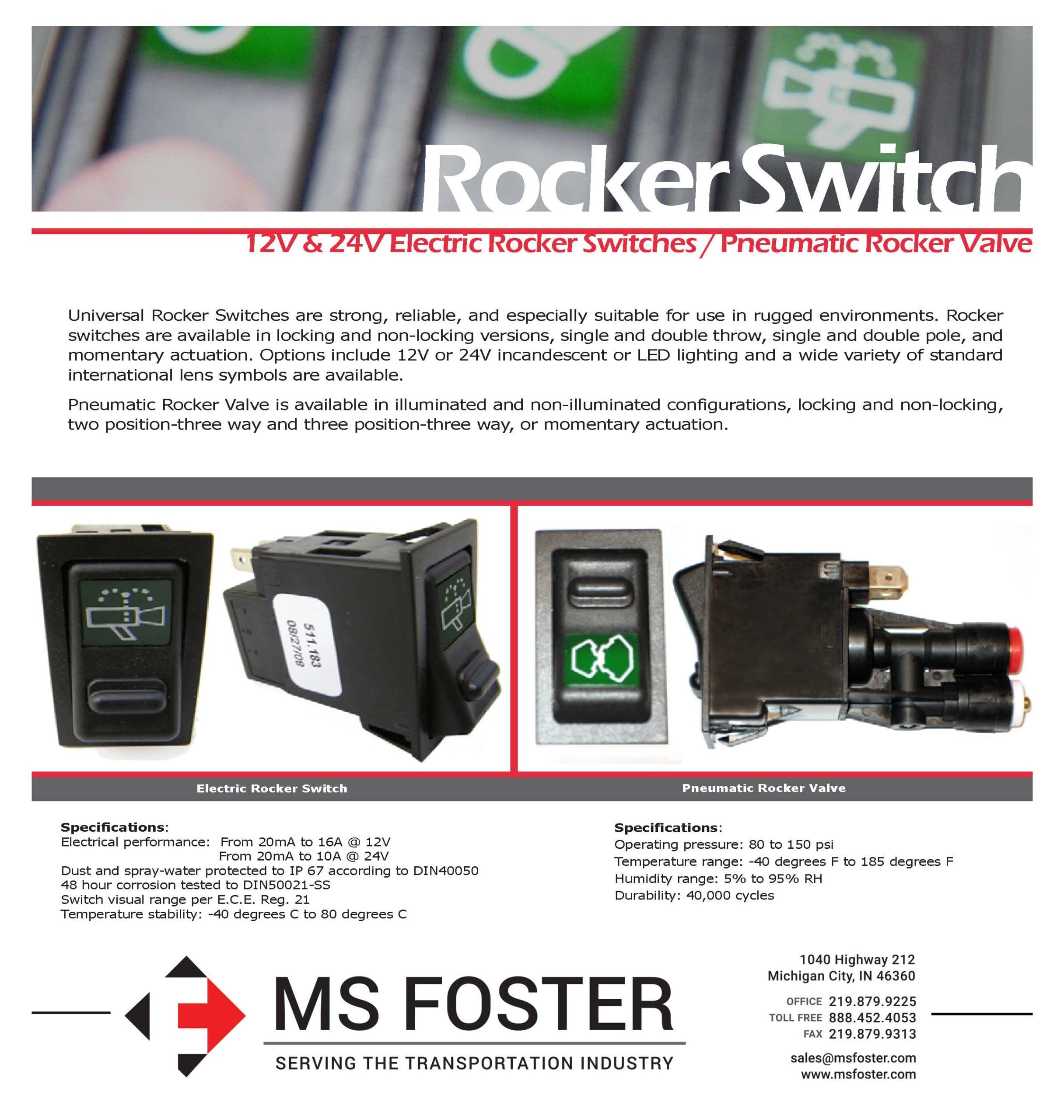

This pneumatic switch is strong, reliable, and ideal for use in rugged environments. Options are available for this air rocker valve. Options include a 12 volt rocker or 24 volt rocker, incandescent or LED lighting, and a wide variety of international lens symbols. This air rocker valve is available in illuminated and non-illuminated configurations, locking and non-locking, two position-three way and three position-three way, or momentary actuation.
Three Position, Three-Way Pneumatic Rocker / Toggle Valve
- Three Position, Three-Way Pneumatic Rocker / Toggle Valve
- Spring centered “Off″ toggle switch
- Momentary supply
- Push-to-connect pneumatic fittings for 1/8″ and 1/4″ nylon tubing
- Rocker actuation force 3.0 lb. maximum
- Durability: 40,000 cycles
- Environment:
- Operating pressure: 80 to 150 psi
- Temperature Range: -40° to +185° F
- Humidity Range: 5% to 95% RH
- Panel opening: 44mm x 22mm x 1.5mm to 4mm thick
Two-Position, Three-Way Pneumatic Rocker / Toggle Valve With One-Way Snap Actuation Lock
- Two Position, Three-Way Pneumatic Rocker / Toggle Valve
- Snap actuation with one-way lock “Off″ toggle switch
- Lighted or unlighted
- Changeable lens for pictorial representation of application(s)
- Push-to-connect pneumatic fittings for 1/4″ nylon tubing
- Environment:
- Operating pressure: 80 to 150 psi
- Temperature Range: -40° to +185° F
- Humidity Range: 5% to 95% RH
- Panel opening: 44mm x 22mm x 1mm to 2.5mm thick
